Introduction Understanding Single-Phase Reactors
Single-phase reactors are essential components in various electrical systems, offering solutions for power factor correction, voltage stabilization, and harmonic distortion reduction. This guide provides a detailed dimension chart for single-phase reactors, covering size, power ratings, and applications.
NRE Technology offers high-quality reactors designed to meet the needs of various industries. This chart helps you understand the relationship between reactor size and performance parameters like inductance, current, and weight. The chart data is critical for engineers and technicians selecting the appropriate reactor for their specific needs.
Dimensions Single Phase Reactor Chart
The following chart presents the dimensions, power ratings, and other critical specifications for NRE Technology's single-phase reactors.
Single Phase Reactor Dimensions Chart
| Capacity P (kvar) | Inductance Value L (mH) | Current I (A) | Width W (mm) | Depth D (mm) | Height H (mm) | Weight G (kg) |
|--------------------|-----------------------|-------------|--------------|--------------|--------------|---------------|
| 1 | 510 | 2.5 | 150 | 120 | 225 | 12 |
| 2 | 255 | 5.0 | 170 | 150 | 250 | 17 |
| 3 | 170 | 7.5 | 190 | 170 | 305 | 21 |
| 4 | 127 | 10.0 | 210 | 180 | 330 | 28 |
| 5 | 102 | 12.5 | 210 | 190 | 330 | 32 |
| 6 | 85 | 15 | 210 | 205 | 330 | 35 |
| 8 | 64 | 20 | 230 | 215 | 355 | 40 |
| 10 | 51 | 25 | 250 | 230 | 380 | 48 |
| 20 | 25 | 50 | 340 | 270 | 440 | 75 |
| 30 | 17 | 75 | 340 | 330 | 440 | 95 |
| 40 | 13 | 100 | 370 | 350 | 530 | 125 |
| 50 | 10 | 125 | 410 | 350 | 610 | 155 |
| 60 | 8.5 | 150 | 410 | 370 | 610 | 180 |
| 80 | 6.4 | 200 | 470 | 380 | 740 | 225 |
| 100 | 5.1 | 250 | 470 | 410 | 740 | 255 |
| 200 | 2.5 | 500 | 570 | 500 | 840 | 430 |
| 300 | 1.7 | 750 | 650 | 550 | 940 | 630 |
| 400 | 1.3 | 1000 | 730 | 600 | 1090 | 830 |
| 500 | 1.0 | 1250 | 730 | 650 | 1090 | 980 |
| 600 | 0.85 | 1500 | 730 | 700 | 1090 | 1180 |
| 800 | 0.64 | 2000 | 890 | 800 | 1260 | 1500 |
| 1000 | 0.51 | 2500 | 890 | 900 | 1260 | 1750 |
Applications Key of Single-Phase Reactors
Single-phase reactors play a crucial role in a variety of applications across different industries. Their primary functions involve enhancing the performance and efficiency of electrical systems.
Common Applications Include:
* Power Factor Correction: Improving the efficiency of electrical grids.
* Voltage Stabilization: Maintaining stable voltage levels in industrial machinery.
* Harmonic Distortion Reduction: Protecting sensitive equipment from electrical noise.
* Renewable Energy Systems: Enhancing the performance of solar inverters and wind turbines.
“Single-phase reactors are essential for optimizing electrical system performance and protecting sensitive equipment.
NRE Technology
Explore More From NRE Technology
Discover Related Products & Guides

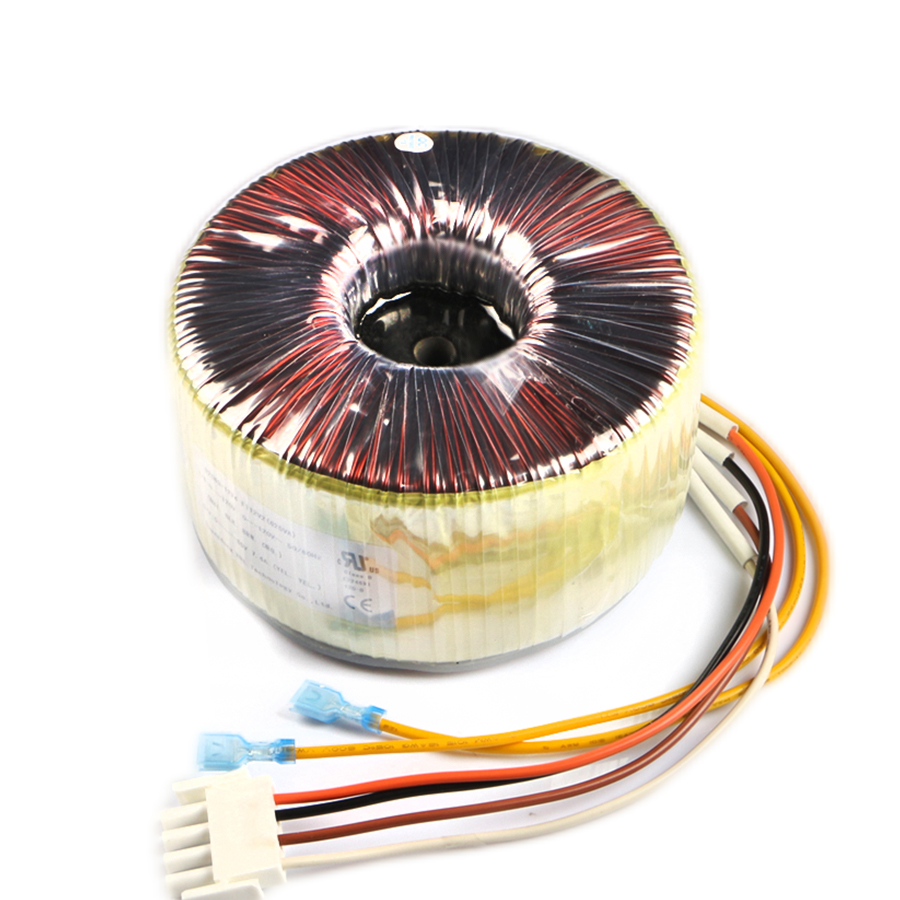

Toroidal Transformer Guide
